| 40hp Tractor |
| Time:2018/7/19 Read:1622 |
|

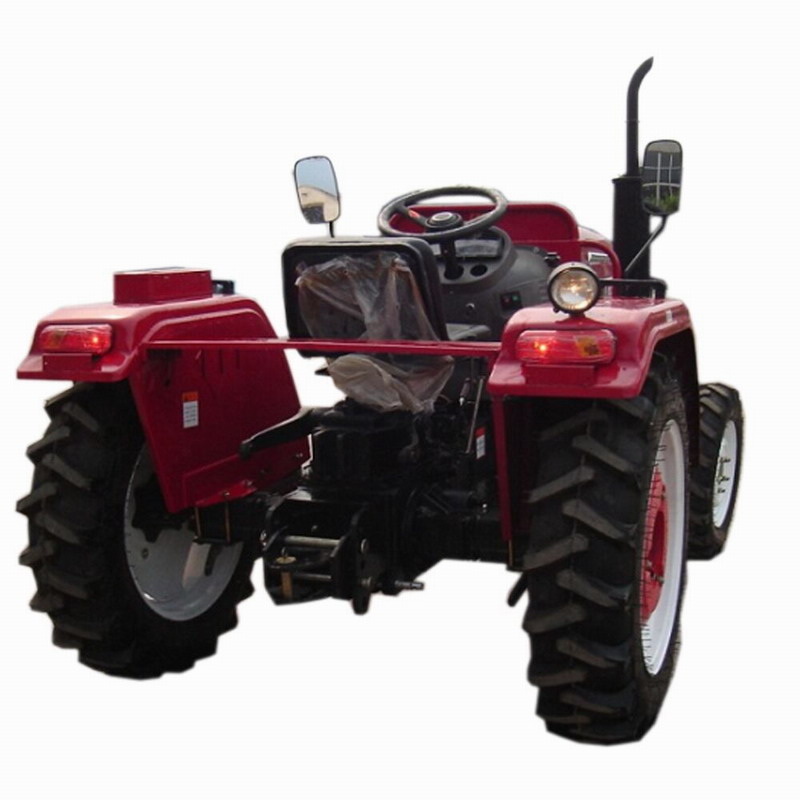

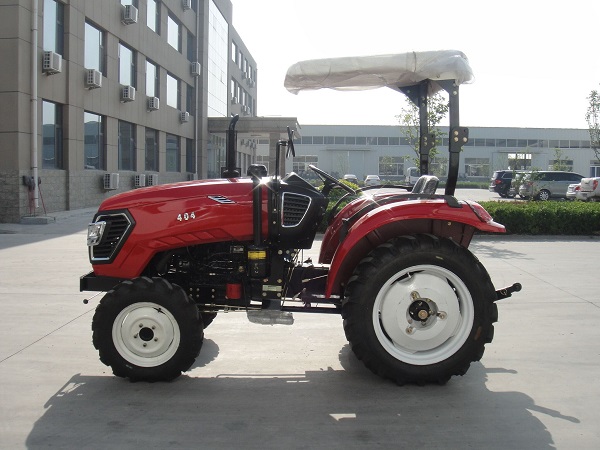

Farm tractor 40hp:
| Power: |
40hp |
| Drive mode: |
4WD |
| Length(without ballast and linkage) |
3150mm |
| Width: |
1550mm |
| Height(to exhuast pipe): |
1980mm |
| Height(if with cab): |
2250mm |
| Tread: |
1200mm(optional1000,1300) |
| Wheel base: |
1450mm |
| Ground clearance: |
277mm |
| Min radius of truning: |
2.4m |
| Net weight: |
1400kg |
| Engine model: |
LD4L23 |
| Type: |
Vertical, water cooling and 4- stroke |
| Rated power: |
40hp / 29.4kw |
| Fuel: |
Diesel |
| Fuel consumption |
less than 245g/kW.h |
| Rated rev. |
2400rpm |
| Front tyre: |
6.00-16 |
| Rear tyre: |
9.5-24(8.3-24,11.2-24 optional) |
| Connection of engine and clutch: |
Shaft connection |
| Clutch: |
Single disc, dry-friction, single stage |
| Transmission box: |
8+2 |
| Steering |
Mechanical or hydraulic type |
| PTO: |
540/1000 |
|
|
