| Backhoe Of Tractor |
| Time:2018/8/31 Read:3225 |
|

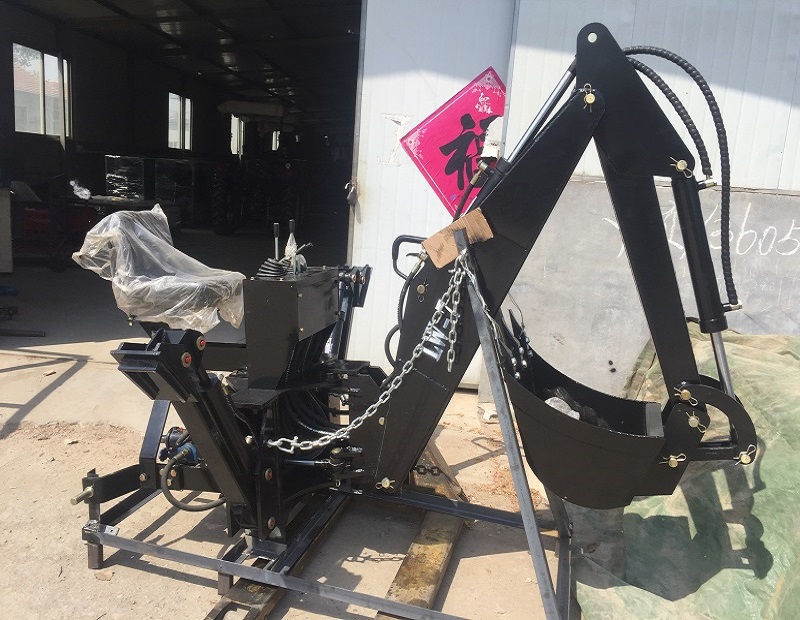

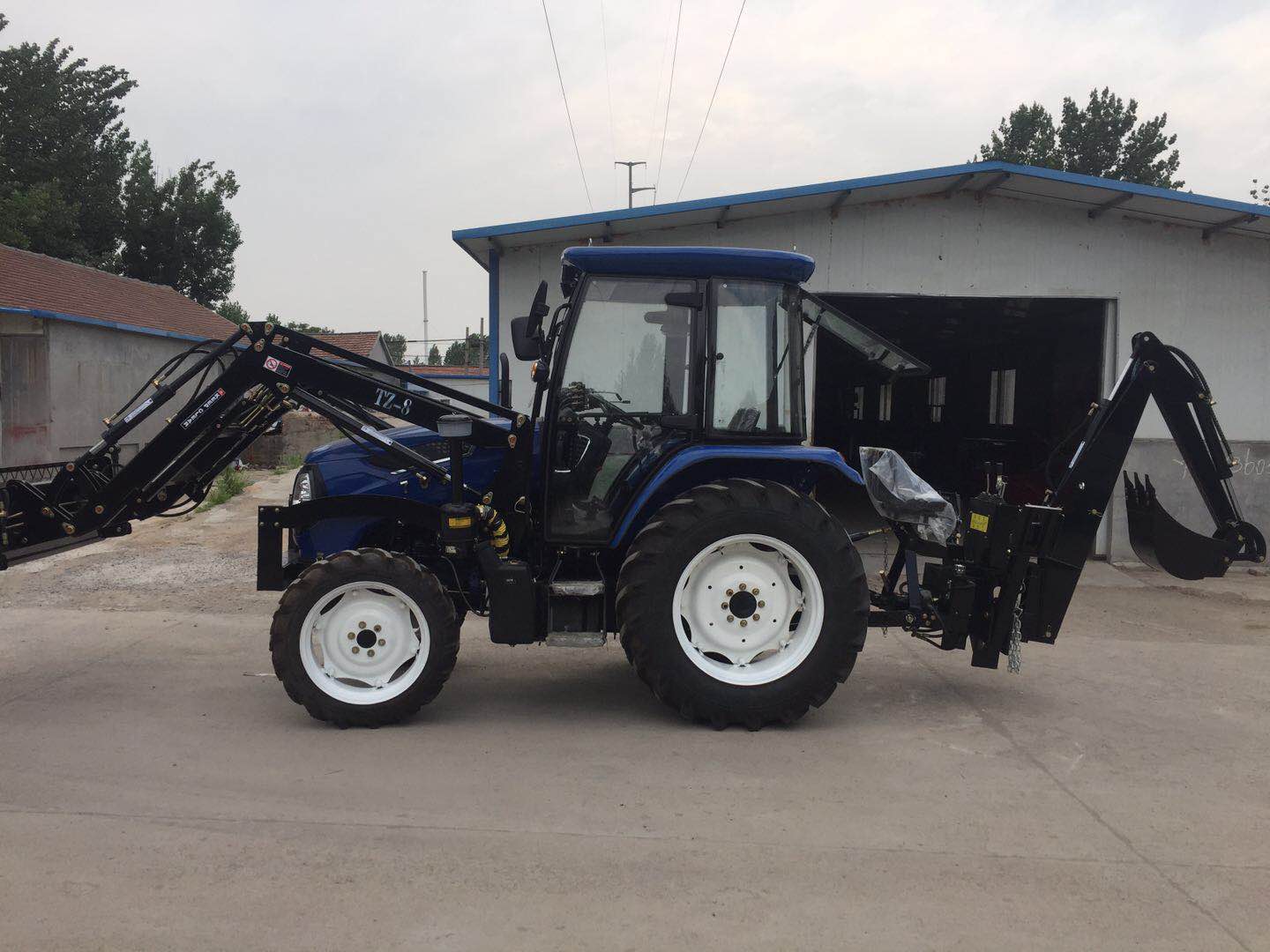

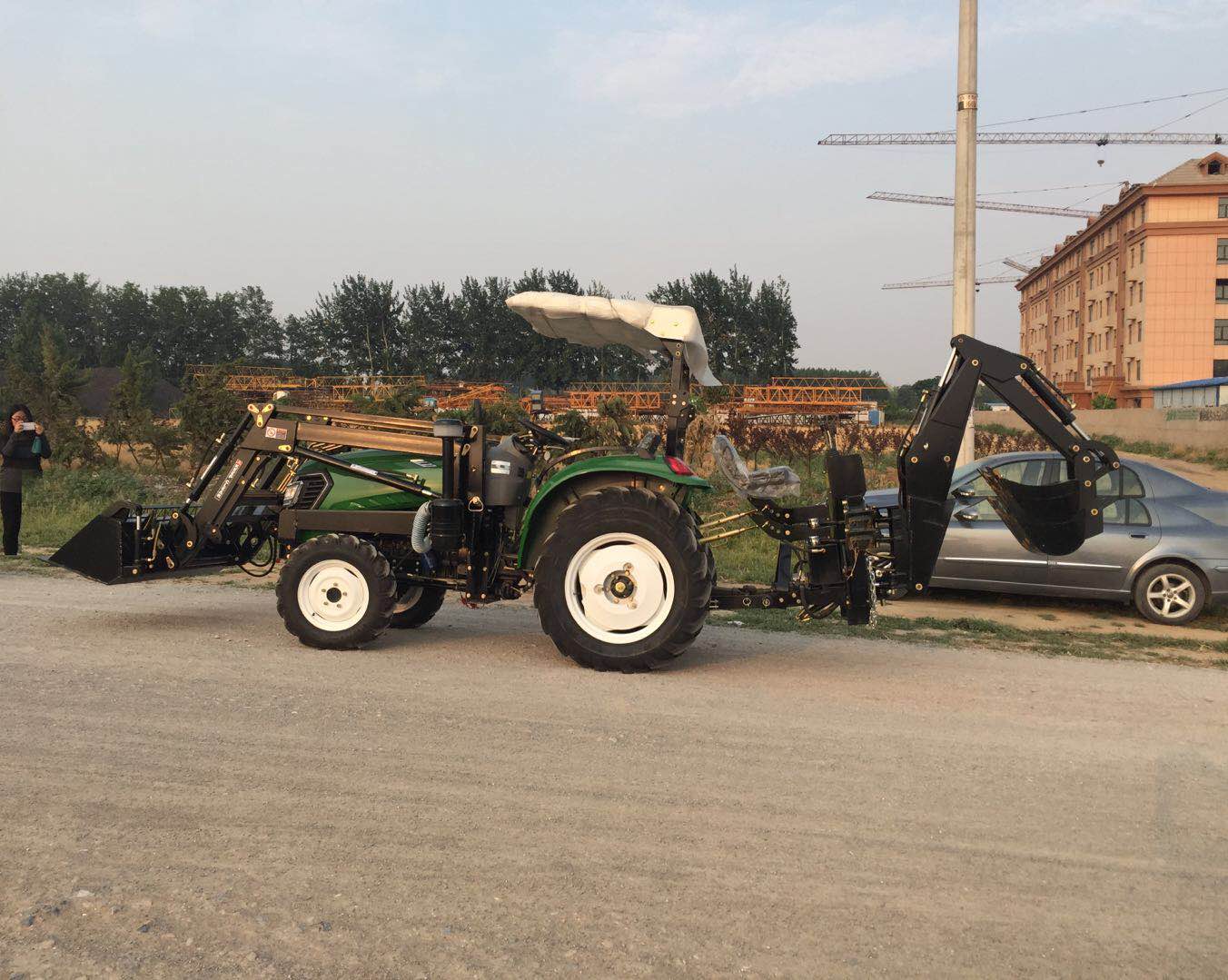

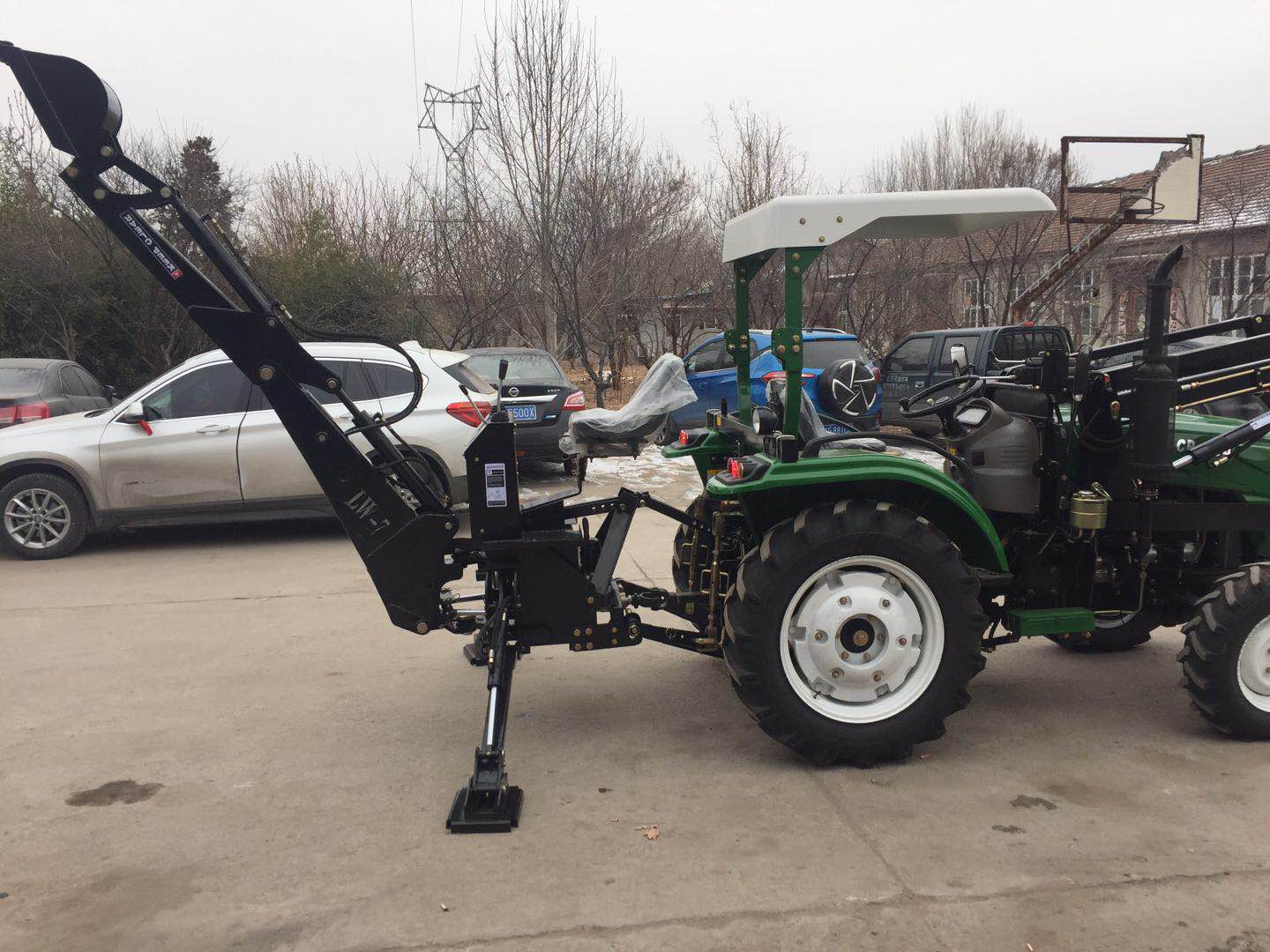

We can supply the front end loader and backhoe for the tractors, the following are the specifications of the backhoe machine:
| Model: |
LW-6 |
LW-7 |
LW-8 |
LW-9 |
| Tractor power: |
25-30hp |
30-45hp |
45-60hp |
60-90hp |
| 3-point linkage: |
CAT-1 |
CAT-1 |
CAT-&2 |
CAT-1&2 |
| Weight: |
480kg |
500kg |
580kg |
620kg |
| Digging depth: |
1750mm |
1950mm |
2250mm |
2550mm |
| Reach from center line of swing pivot: |
2600mm |
2900mm |
3200mm |
3600mm |
| Loading height: |
1720mm |
1840mm |
1930mm |
2210mm |
| Transport height: |
1840mm |
2060mm |
2130mm |
2480mm |
| Extend height: |
2870mm |
3110mm |
3240mm |
3590mm |
| Loading reach: |
950mm |
1180mm |
1140mm |
1360mm |
| Transport overhang: |
1080mm |
1110mm |
1220mm |
1270mm |
| Undercut: |
730mm |
830mm |
470mm |
520mm |
| Bucket rotation: |
180 degree |
180 |
180 |
180 |
| Stabilizer spread(up position) |
1310mm |
1310mm |
1310mm |
1310mm |
| Stabilizer spread(down position) |
2100mm |
2100mm |
2340mm |
2340mm |
| Swing Arc. |
180 degree |
180 |
180 |
180 |
| Bucket width: |
300mm |
400mm |
450mm |
500mm |
| Bucket volume: |
0.036 m3 |
0.045m3 |
0.052 |
0.063 |
|
|
